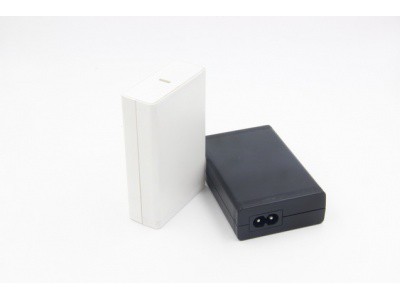

Type C- 5V-20V 3.25A YJC060A
技术参数/Technical Data
额定输入电压/Rated input voltage:100-240Vac
输入电压范围/Input voltage range:90-264vac
额定工作频率/Rated operating frequency:50/60Hz
工作频率范围/Operating frequency range:47-63Hz
输入电流/Input current:1500mA Max.
能效等级/Energy efficiency level:VI
输出电压/Output voltage:5V/12V/20Vdc
输出电流范围/Output current range:3250mA Max.
输出功率/Output power:65W Max.
环境要求/Environmental Specification
工作温度/Operation tenp:0℃～40℃
认证标准
中国/China GB4943
欧州/Europe EN60950
北美/North American UL60950+CAN/CSA C22.2
日本/Japan J60950
澳州/Australia AS/NZS 60950
